MDBT42Q-DB-32

* Module Demo Board built by MDBT42Q-512KV2
* Nordic nRF52832 SoC Solution
* A recommended 3rd-party module by Nordic Semiconductor.
* BT5.4 & BT5.2 & BT4.2 Bluetooth Specification Certified
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
* 32-bit ARM® Cortex™ M4F CPU
* 512kB Flash Memory / 64kB RAM
* RoHS & Reach Compliant.
* 32 GPIO
* Chip Antenna
* Interfaces: SPI, UART, I2C, I2S, PWM, ADC, and NFC
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, and 2,4GHz ultra low-power wireless applications.
BUY FROM
PRODUCT INFO
SPECIFICATION
DOCUMENT
MDBT42Q-DB demo board is designed for quick testing and debugging without building your own board. The board is only available with MDBT42Q-512KV2 (Chip Antenna) module.

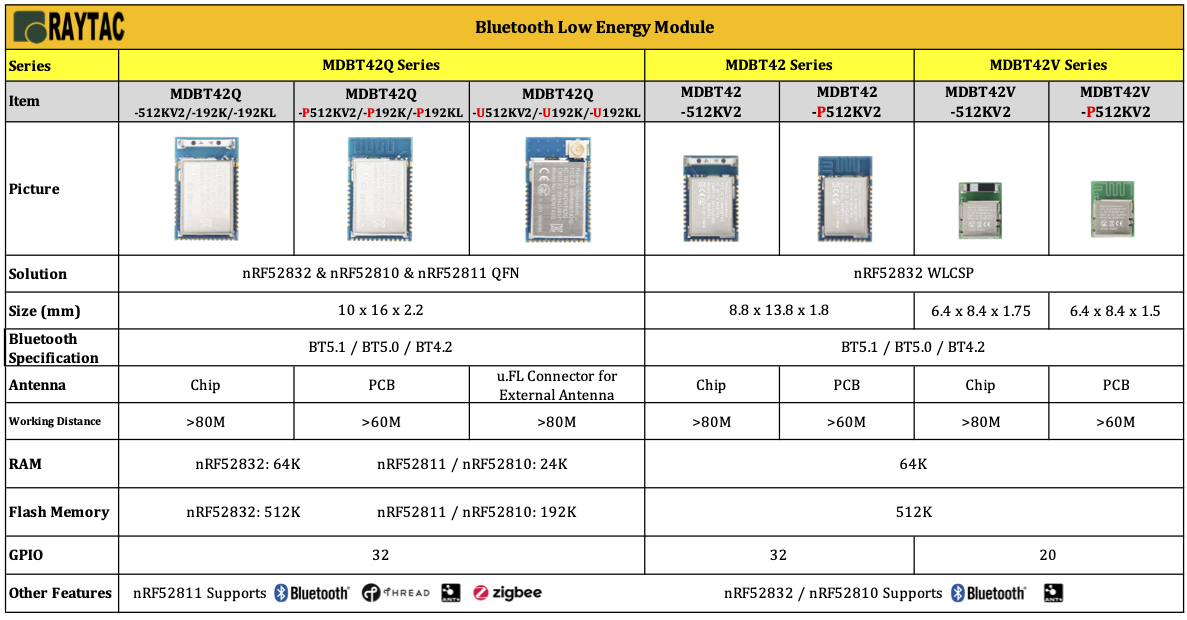

Raytac nRF52832 module spectrum covers MDBT42Q, MDBT42 and MDBT42V series with both Chip Antenna and PCB Antenna option for selection.

For customers looking for Good form factor may select MDBT42Q series module
MDBT42Q-512KV2 deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42Q-P512KV2 deployed PCB Antenna and offers a fair connectivity ability.

For customers looking for Smaller form factor may select MDBT42 series module.
MDBT42-512KV2 deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42-P512KV2 deployed PCB Antenna and offers a fair connectivity ability.

For customers looking for Compact form factor may select MDBT42V series module.
MDBT42V-512KV2 deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42V-P512KV2 deployed PCB Antenna and offers a fair connectivity ability.

For customers looking for Entry Level nRF52810 SoC, MBT42Q offers a pin to pin compatible module solution.
MDBT42Q-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42Q-P192K deployed PCB Antenna and offers a fair connectivity ability.




Raytac's MDBT42Q & MDBT42Q-P is a BT5.2 ＆ BT4.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PWM, ADC and NFC interfaces for connecting peripherals and sensors.

Quick Specifications:
32-bit ARM® Cortex™ M4F CPU
Supply: 1.7V – 3.6V
Memory: 512kB Flash Memory
RAM: 64kB
Tx Power: +4 dBm @ 7.5mA, 0 dBm @ 5.3mA
Rx Sensitivity: -96 dBm @ 5.4mA
Flexible and configurable 32 GPIO (8 analog inputs)
Interfaces: UART / I2C / SPI / PWM / PDM / I2S / NFC
3 x Hardware SPI master ; 3 x Hardware SPI slave‧2 x two-wire master ; 2 x two-wire slave
•  1 x UART (CTS / RTS)
•  PDM for digital microphone
•  I2S for audio
12-bit / 200KSPS ADC
128-bit AES ECB / CCM / AAR co-processor
Low cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
Low power 32MHz crystal and RC oscillators
Operating Temp: -40°C to +85°C
Specification：
[nRF52832] MDBT42Q-512KV2 & MDBT42Q-P512KV2 Spec (Ver.P)

Design Guide includes
MDBT42Q & MDBT42Q-P & MDBT42Q-U Footprint_Design Guide (230616)
  • Footprint (compatible for Protel, Eagle, Altium Design)
  • 2D/3D drawing
  • Reflow/Solder Profile
  • Spec for external 32.768KHz

RoHS & REACH Report：
RoHS & REACH Report for MDBT42Q & MDBT42Q-P & MDBT42Q-U

Reliability Test Report：
MDBT42Q-512KV2 & P512KV2 Reliability Test Report (210719)

Related Links：
•   Nordic 3rd Party Modules/Modems
(Raytac's modules are all qualified Nordic 3rd Party Bluetooth low energy module, please go following website for more detailed information.)
