MDBT42TV-P192K

* Nordic nRF52805 SoC Solution
* A recommended 3rd-party module by Nordic Semiconductor.
* BT5.4 & BT5.2 & BT5.1 & BT5 Bluetooth Specification Certified.
* Certifications: FCC, IC, CE, UKCA, Telec (MIC), KC, SRRC, NCC
* 32-bit ARM® Cortex™ M4 CPU
* 192kB Flash Memory / 24kB RAM
* RoHS & Reach Compliant.
* Dimension：5.8 x 8.3 x 1.3 mm
* 10 GPIO
* PCB Antenna
* Interface: SPI, UART, I2C, PWM
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy and 2.4GHz ultra low-power wireless applications.
BUY FROM
PRODUCT INFO
SPECIFICATION
DOCUMENT

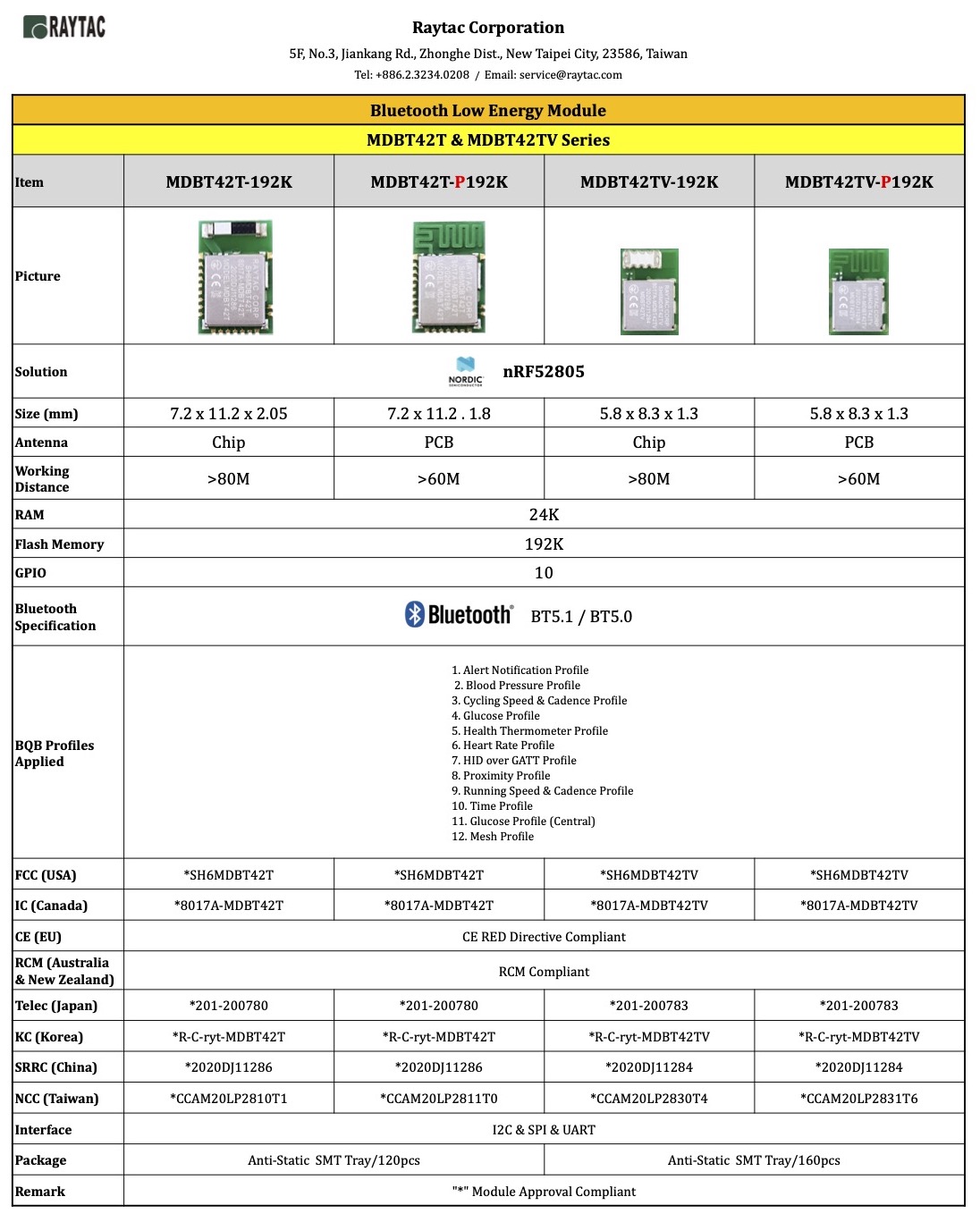

Raytac nRF52805 tiny and low cost modules spectrum covers MDBT42TV-192K & MDBT42TV-P192K series with both Chip Antenna and PCB Antenna option for selection.

Highlight of nRF52805 Solution
* 10 GPIO
* Tiny Size: 5.8 x 8.3 x 1.3 mm
* Budgetary

Module DevKit Demo Board MDBT42T-DB-05 is designed for quick testing and debugging without building your own board. The demo board employed MDBT42T-192K (Chip Antenna) module.

For customers looking for Compact form factor may select MDBT42T series module.
MDBT42T-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42T-P192K deployed PCB Antenna and offers a good connectivity ability.

For customers looking for Tiny form factor may select MDBT42TV series module.
MDBT42TV-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42TV-P192K deployed PCB Antenna and offers a good connectivity ability.



Raytac's MDBT42T & MDBT42T-P is a BT5.4 qualifed module designed based on Nordic nRF52805 SoC solution, which incorporates: GPIO, SPI, UART, I2C, and ADC interfaces for connecting peripherals and sensors.

Bluetooth Qualified Specification: BT5.4 / BT5.3 / BT5.2 / BT5.1 / BT5
Regional Regulation Pre-Certified: FCC/IC/CE/Telec/KC/SRRC/NCC/RCM/UKCA

Quick Specifications
‧Multi-protocol 2.4GHz radio
‧32-bit ARM Cortex – M4 processor
‧192KB flash programmed memory and 24KB RAM
‧Software stacks available as downloads
‧Application development independent from protocol stack
‧On-air compatible with nRF51, nRF24AP and nRF24L series
‧Programmable output power from +4dBm to -20dBm
‧RSSI
‧RAM mapped FIFOs using EasyDMA
‧Flexible and configurable 10 pin GPIO
‧Programmable peripheral interface - PPI
‧Full set of digital interface all with Easy DMA including:
‧1 x Hardware SPI master ; 1 x Hardware SPI slave ‧1 x two-wire master ; 1 x two-wire slave
‧1 x UART (CTS / RTS)
‧2 channel 12-bit / 200KSPS ADC
‧128-bit AES ECB / CCM / AAR co-processor
‧Low power 32MHz crystal and RC oscillators
‧Wide supply voltage range 1.7V to 3.6V
‧On-chip DC/DC buck converter
‧Individual power management for all peripherals ‧Timer counter
‧3x 32-bit
‧2 x 24-bit RTC
Specification：
[nRF52805] MDBT42TV-192K & MDBT42TV-P192K Spec (Ver.D)

Design Guide includes
MDBT42TV & MDBT42TV-P Footprint & Design Guide (230804)
  • Footprint (compatible for Protel, Eagle, Altium Design)
  • 2D/3D drawing
  • Reflow/Solder Profile
  • Spec for external 32.768KHz

RoHS & REACH Report：
RoHS & REACH Report for MDBT42TV & MDBT42TV-P
